Assembled valves

PREACTION DOUBLE ELECTRIC PNEUMATIC VALVE

Print LinkedIn Email

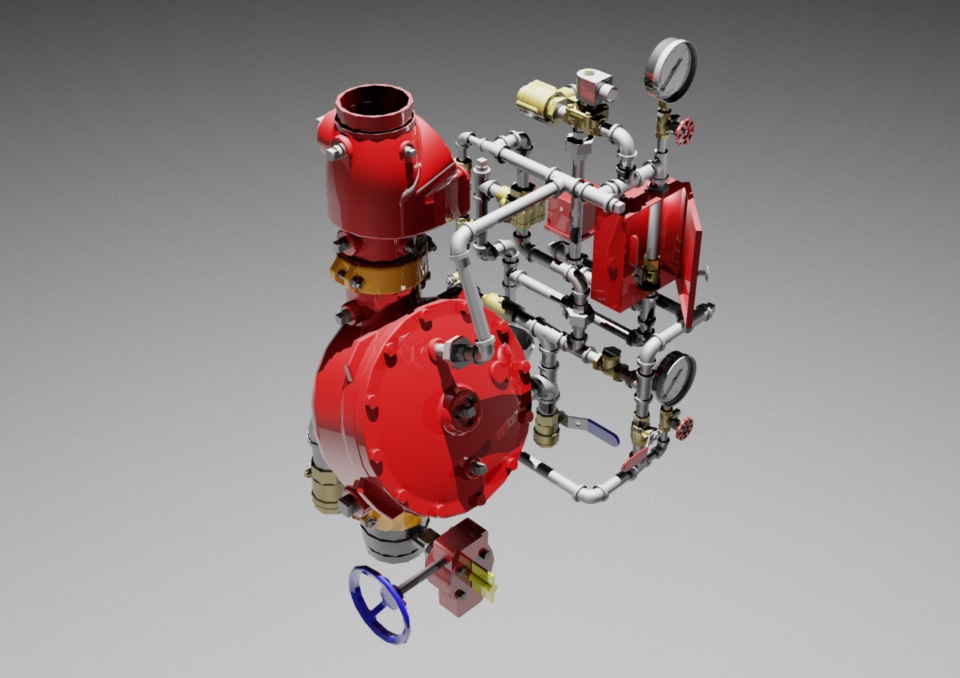

Browse through the assembled valve drawing for the main components identification.

Note: 4" valve illustrated. Also available in other sizes (see below).



Some description

  1/2’’ Solenoid Valve 24 VDC  (n/c) Pressure Operated Relief Valve D-3 (or C-1 on the old valve) ¼’’ Inline Check Valve ¼’’ Strainer ½’’ Ball Valve ¾’’ Drip Check Valve D-1 4’’ Straight Through Deluge Valve F-1 2’’ Ball Valve for Flow Test (n/c) Supervised Butterfly Valve ¾’’ Ball Valve for Auxiliary Drain ½’’ Ball Valve ¼’’ 3 Way Valve Water Gauge ½’’ Drain Check D5781A Emergency Release (includes ball valve) PS10-1A Waterflow Pressure Switch ¼’’ 3 Way Valve Water Gauge E-Z Riser Check Valve Pneumatic Actuator

DESCRIPTION PRODUCT CODE PRICE CODE
PREACTION SYST DBLE INT VERT ELECT/PNEUM 1-1/2" 54TPRDV015 $ 16,202.85 D
PREACTION SYST DBLE INT VERT ELECT/PNEUM 2" 54TPRDV020 $ 16,643.18 D
PREACTION SYST DBLE INT VERT ELECT/PNEUM 2-1/2" 54TPRDV025 $ 18,166.56 D
PREACTION SYST DBLE INT VERT ELECT/PNEUM 3" 54TPRDV030 $ 17,351.20 D
PREACTION SYST DBLE INT VERT ELECT/PNEUM 4" 54TPRDV040 $ 19,200.56 D
PREACTION SYST DBLE INT VERT ELECT/PNEUM 6" 54TPRDV060 $ 24,091.30 D
PREACTION SYST DBLE INT VERT ELECT/PNEUM 8" 54TPRDV080 $ 38,004.57 D

You have some questions? Contact us 1 800 564.7031 or email us.

Information Request »
