Assembled valves

ALARM VALVE

Print LinkedIn Email

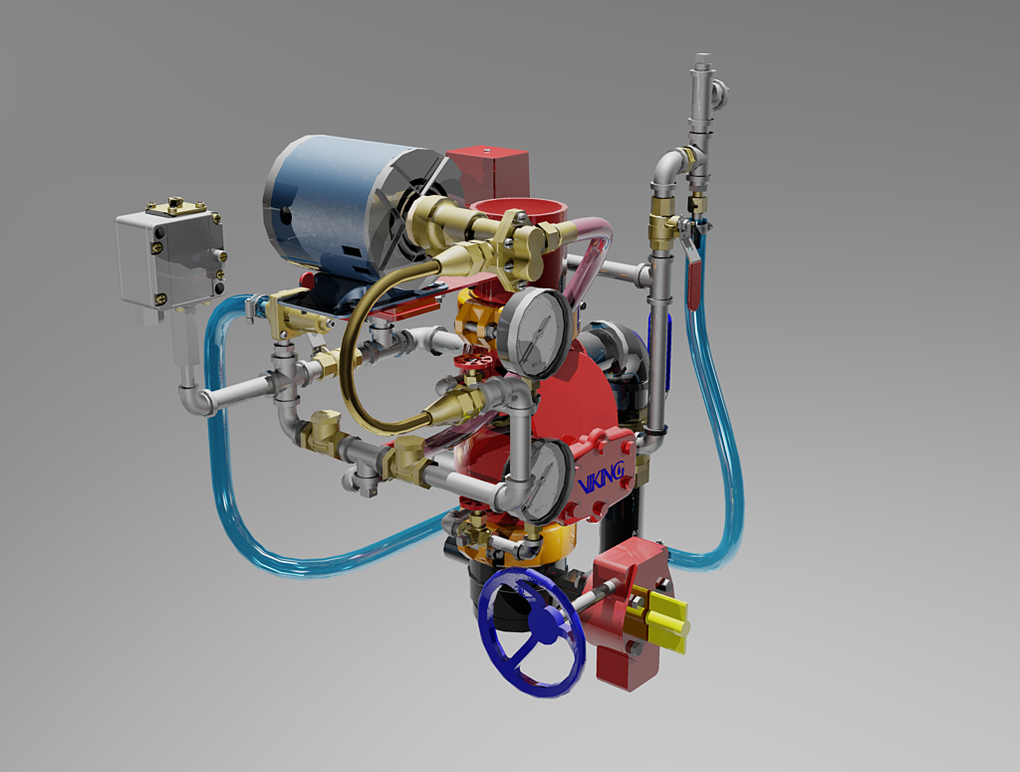

Browse through the assembled valve drawing for the main components identification.

Note: 4" valve illustrated. Also available in other sizes (see below).



Some description

   PS10-1A Waterflow Pressure Switch Excess Pressure Pump Excess Pressure Pump T254-J Allen Bradley Pressure Switch ¼’’ Relief Valve ½’’ Ball Valve ½’’ Swing Check Valve ½’’ Swing Check Valve 36’’ Clear Vinyl Tubing ¼’’ 3 Way Valve 4’’ Supervised Butterfly Valve Water Gauge 4’’ Alarm Valve J-1 Water Gauge 36’’ Clear Vinyl Tubing 36’’ Clear Vinyl Tubing 2’’ Ball Valve PS120-2A Supervisory Pressure Switch ½’’ Ball Valve    7/32’’ Restriction Orifice    1/8’’ Restriction Orifice

DESCRIPTION PRODUCT CODE PRICE CODE
WET SYSTEM ASSY 3" G/G WITH EPP 1/3HP 54TAL03P30 $ 8,891.80 D
WET SYSTEM ASSY 4" G/G WITH EPP 1/2HP 54TAL05P40 $ 8,628.60 D
WET SYSTEM ASSY 4" G/G WITH EPP 1/3HP 54TAL03P40 $ 8,475.80 D
WET SYSTEM ASSY 6" G/G WITH EPP 1/2HP 54TAL05P60 $ 9,551.95 D
WET SYSTEM ASSY 6" G/G WITH EPP 1/3HP 54TAL03P60 $ 9,551.95 D
WET SYSTEM ASSY 8" G/G WITH EPP 1/2HP 54TAL05P80 $ 11,656.51 D
WET SYSTEM ASSY 8" G/G WITH EPP 1/3HP 54TAL03P80 $ 11,541.62 D

You have some questions? Contact us 1 800 564.7031 or email us.

Information Request »
